UNM Civil Engineering Demonstrates Flood Control Model
September 08, 2011
Categories: Inside UNM
By Tamara Williams
The demonstration started with just a trickle of water meandering down the 65' channel. The blue-tinted water rushed along, gushing over the channel's sides in some places, simulating a flood along the North Diversion Channel. It quickly accelerated to a modeled flow of 24,000 cubic feet per second. UNM Civil Engineering Professor Julie Coonrod was in her element and exhilarated to watch.

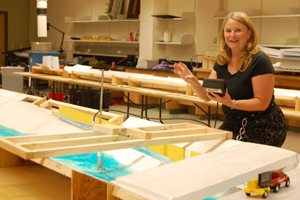

The Hydraulics Lab in the basement of the Centennial Engineering Center is Coonrod's water playground and research focus, where she builds physical models of storm water structures primarily to help the Albuquerque Metropolitan Arroyo Flood Control Authority (AMAFCA) alleviate flooding, prevent injury or loss of life, and eliminate or minimize property damage.
Her most recent project is to examine the potential impact of stormwater conveyance in the North Diversion Channel if bike notches (recessed bike paths) are placed under the Singer and Osuna Bridges. The North Diversion Channel was built by the Corps of Engineers in the 1960's, and while AMAFCA maintains it, the Corps must approve any changes made in the channel.
The Osuna Bridge is particularly interesting, as the bridge abutments extend into the channel just downstream of the Bear Arroyo confluence. Coonrod's work has shown that the proposed bike notches will not affect the stormwater conveyance.
This is the 23rd year that UNM has been under contract with AMAFCA supporting research as well as funding for graduate students like Kareem Saint-Lot.
When a group from the Army Corps of Engineers recently came to the lab for a demonstration, they pointed out that Coonrod's model showed an ideal-case scenario for the flooding. They brought up two issues: a hand rail on the trail could get clogged with debris, rendering the area of the bike notch ineffective for carrying flow, and the effect of debris and sediment in the flow should be considered. Coonrod and her team built long vertical panels simulating a worst-case scenario of a clogged hand rail. They also used sections of wire screens to simulate increased roughness in the channel due to debris and sediment.
Coonrod's team takes velocity measurements in the channel to make sure the flow properties are scaled properly. The simulated 500-year storm still cleared the bridges and remained in the channel, assuring the Corps that the bike notches would not compromise the flood conveyance properties of the channel.
Coonrod and her students typically build a couple models each year for AMAFCA. Recent models have included the South Diversion Channel Best Management Practice and the Hahn Arroyo Improvements, both currently under construction in Albuquerque. AMAFCA estimates that lab experiments have saved them millions of dollars. It's much easier to alter a scaled design of wood, plastic and metal than it is to alter the large reinforced concrete structures in the field.
